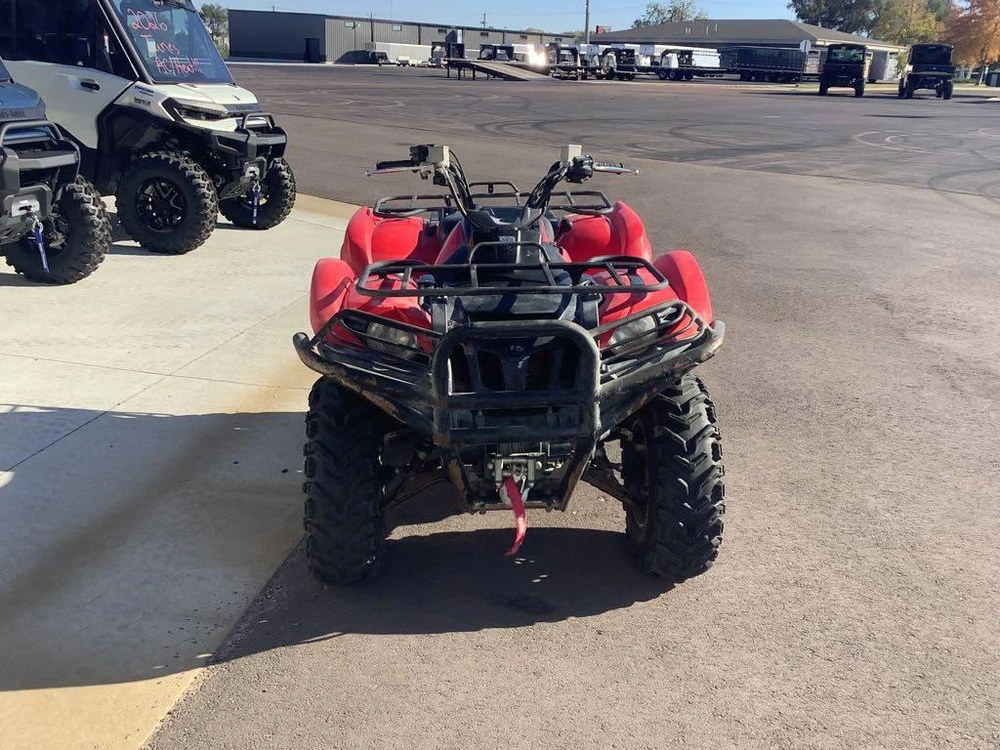

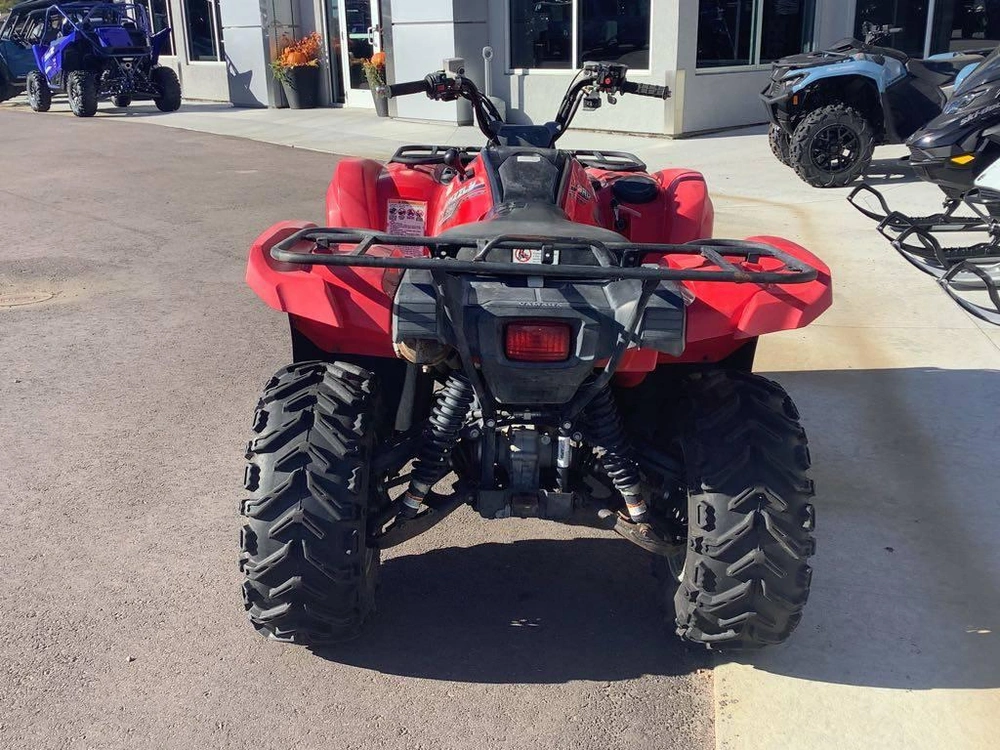

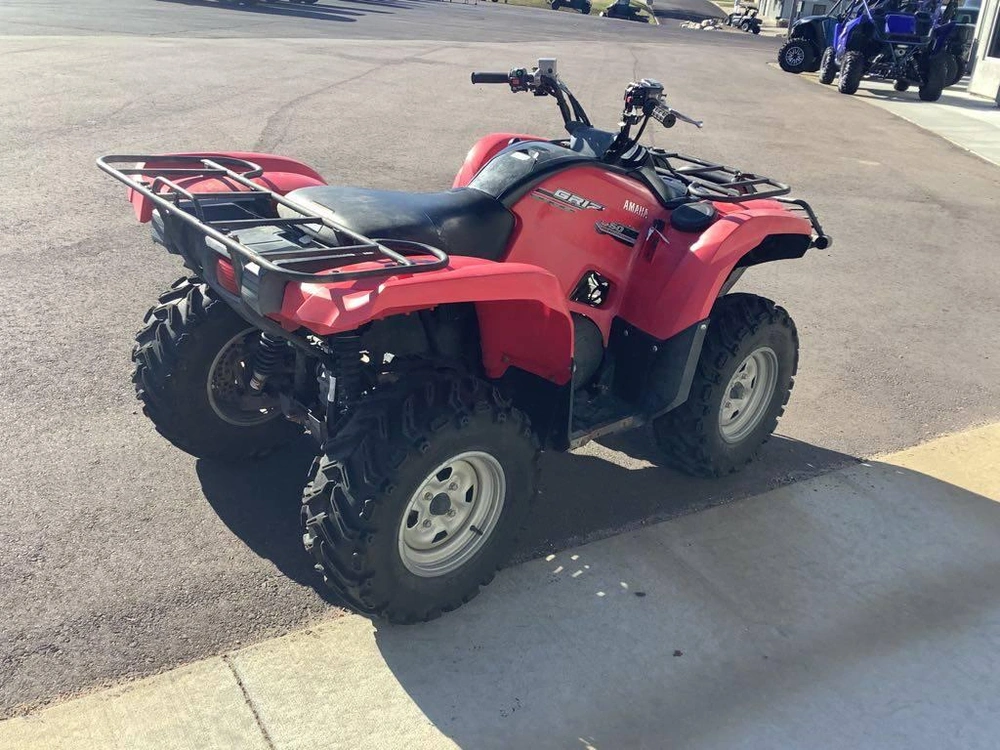

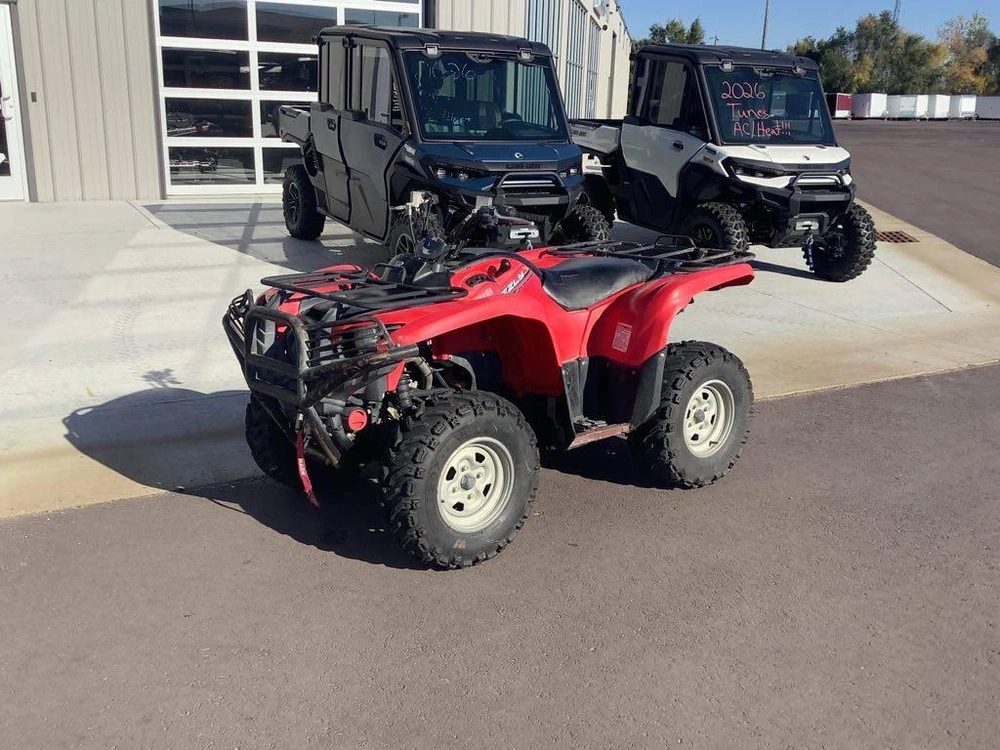

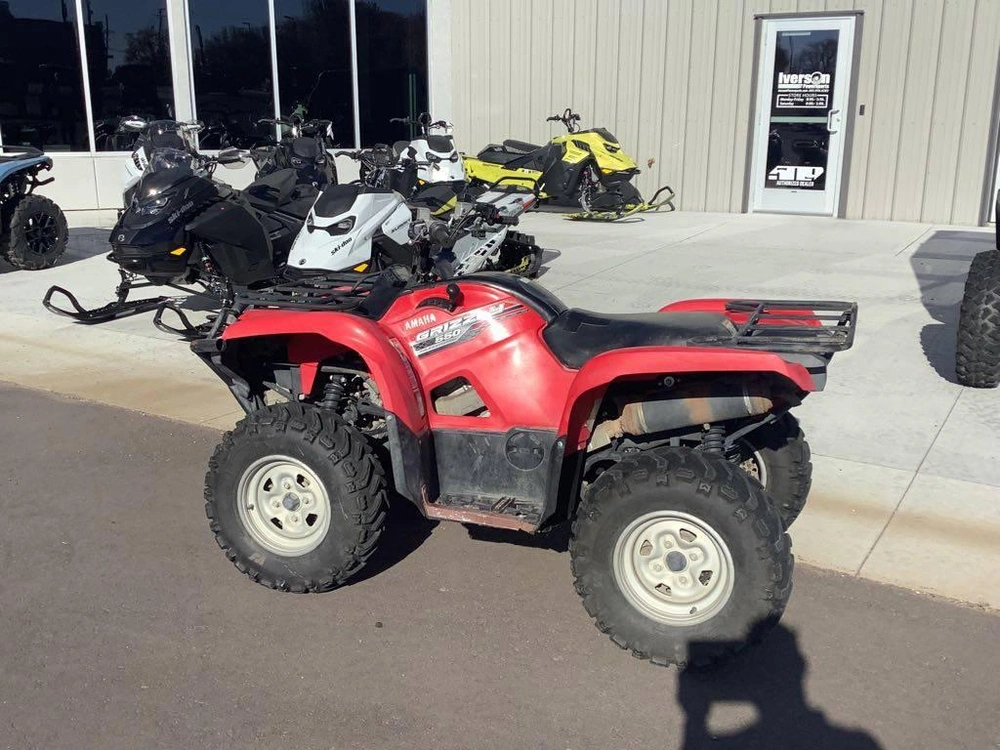

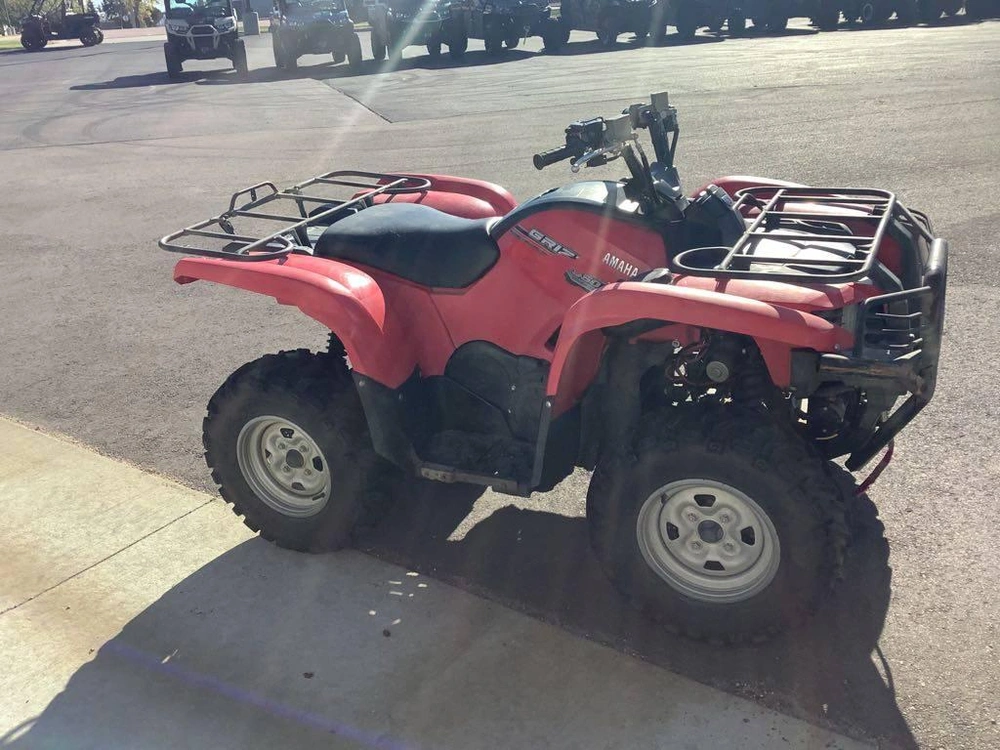

2014 Yamaha Grizzly 550 FI Auto. 4x4 EPS

Key Features* The 550cc class has a leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI, with a largest-in-class 558cc powerplant, Electric Power Steering and excellent value.
* Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from sea level to 15,000 feet.
* Yamaha Electric Power Steering provides progressive assist at slow speeds and over rough terrain while maintaining optimized rider feedback, superior comfort and terrainability.
* Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.
* Three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.
* Fully independent long-travel four-wheel suspension with WideArc™ A-arms up front and five-way preload-adjustable shocks provides maximum ground clearance for unparalleled comfort over rough terrain.

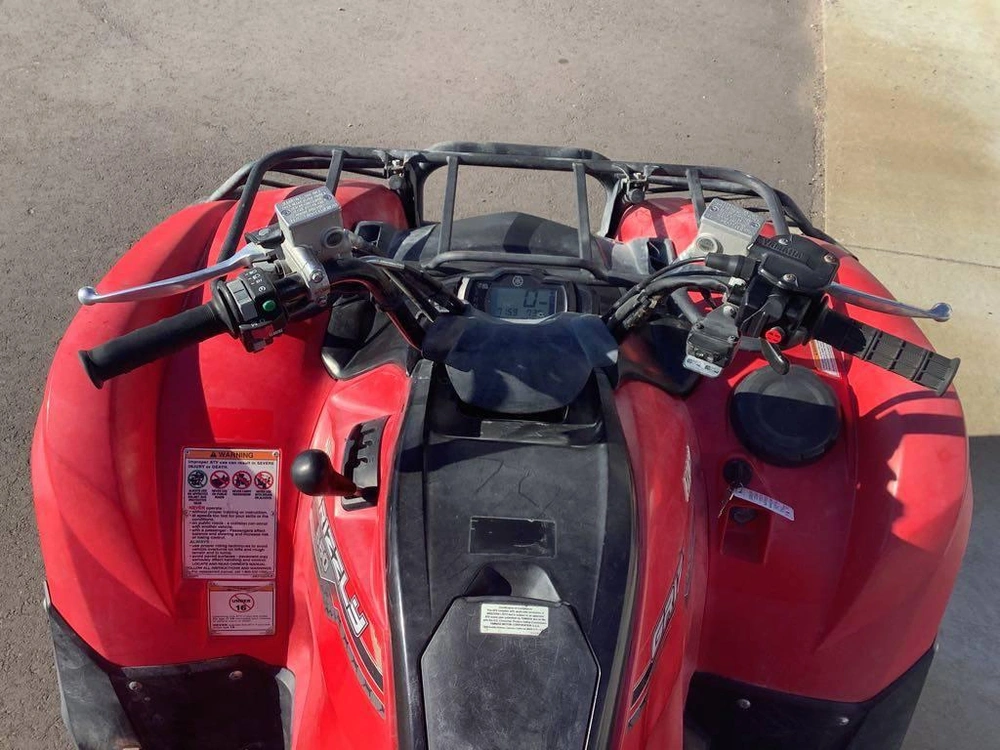

* Advanced digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
* The Grizzly 550 EPS boasts the lightest weight in its class at only 648 pounds wet weight.

Engine Features* This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
* Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
* Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
* Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
* Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
* Yamaha Fuel Injection uses a Mikuni® 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
* Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
* Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
* High-capacity radiator with fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
* Five-position shift lever with H, L, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic transmission control.
* Specially designed drive system air intake helps prevent overheating and assists in keeping water and debris from entering the drive case.
* Oil access cover allows easy access to check oil level.

Chassis/Suspension Features* Electric Power Steering. This assist feature, pioneered by Yamaha on the Grizzly 700 FI EPS, lightens steering for superior comfort and terrainability.
* 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter waterproof storage compartment under there, too.
* 10.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
* 25x8-12 front and 25x10-12 rear Maxxis® tires provide responsive steering and handling and excellent comfort.
* Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.
* Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
* Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
* Fully independent long-travel four-wheel suspension with WideArc™ A-arms up front and five-way preload-adjustable shocks provides maximum ground clearance for unparalleled comfort over rough terrain.
* Four-wheel hydraulic disc brakes serve up powerful and consistent braking performance.
* Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.

Additional Features* Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
* Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
* Fenders have a textured finish that resist scratching and scuffing.
* Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
* Advanced digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
* Dual 35-watt multireflector halogen bulb headlights with high/low beams provide bright illumination for nighttime work or play.
* Assembled in Newnan, GA, U.S.A.

Engine* Type: 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
* Bore x Stroke: 92.0 x 84.0mm
* Compression Ratio: 9.3:1
* Fuel Delivery: Yamaha Fuel Injection (YFI), 40mm
* Ignition: TCI, 32-bit ECU
* Starting System: Electric
* Transmission: Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
* Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Chassis* Suspension / Front: Independent double wishbone; 5-way preload adjustment, 7.1-in travel
* Suspension / Rear: Independent double wishbone; 5-way preload adjustment, 9.5-in travel
* Brakes / Front: Dual hydraulic disc
* Brakes / Rear: Dual hydraulic disc
* Tires / Front: AT25 x 8-12
* Tires / Rear: AT25 x 10-12

Dimensions* L x W x H: 81.3 x 46.5 x 48.8 in.
* Seat Height: 35.6 in.
* Wheelbase: 49.2 in.
* Turning Radius: 126 in.
* Ground Clearance: 10.8 in.
* Fuel Capacity: 5.3 gal.
* Wet Weight: 648 lb.
* Rack Capacity: 99 lb. Fr./187 lb. Rr.
* Towing Capacity: 1322 lb.

Other* Instrumentation: Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge and gear position
* Lighting: Dual 35W Halogen multireflector headlights & 21W/5W brakelight
* Warranty: 6 Month (Limited Factory Warranty)
